Location:Product-
The wide-capacity corrugated furnace is combined with the fully water-cooled back-combustion chamber, the load of the combustion chamber is low, the combustion of harmful substances is low, and the emission of nitrogen is low; the large water chamber in the furnace and the larger design water capacity ensure better nature Circulation and safe heat conduction; low-resistance, high-efficiency threaded smoke pipe layout, making the smoke side resistance smaller,
Back >>
Product introduction
  • Features
  • Basic parameters
  • Related products

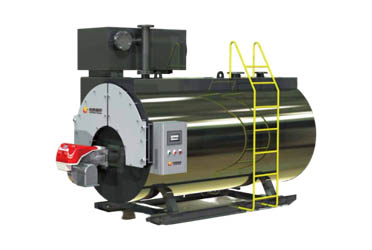

Condensation waste heat recovery steam boiler
CONDENSING STEAM BOIL .ER

C series condensing waste heat recovery steam boilers use high-efficiency flue gas energy saving devices and condensing devices to absorb the sensible heat in the exhaust flue gas of the boiler and the latent heat released by the condensation of water vapor in the flue gas, thereby breaking the thermal efficiency limit of traditional gas boilers.


Optimized structure, efficient operation
The wide-capacity corrugated furnace is combined with the fully water-cooled back-combustion chamber, the load of the combustion chamber is low, the combustion of harmful substances is low, and the emission of nitrogen is low; the large water chamber in the furnace and the larger design water capacity ensure better nature Circulation and safe heat conduction; low-resistance, high-efficiency threaded smoke pipe layout, making the smoke side resistance smaller,
The heat transfer effect is better; the composite ceramic insulation layer is combined with the new heat insulation reflective layer to reduce energy consumption and lock the heat without loss.

Low NO, combustion, environmental protection and energy saving

It adopts a low-nitrogen wide passenger type corrugated furnace design with low heat load in the combustion chamber; an ultra-low-nitrogen burner with flue gas recirculation technology (FGR) is optional, so that the NO emission value is less than 30mg/Nm'.


Humanized design, stable operation

Convenient hinged fully open sealed smoke box design, good heat preservation effect, and convenient for daily maintenance: equipped with imported burners, temperature sensors and other components to ensure efficient and stable operation of the entire unit; -Integrated top platform, which simplifies and facilitates installation and Maintain and protect the top insulation layer from damage.


Condensation technology

The pressure-bearing condensing device is assembled on the upper part of the boiler, with a compact structure and high space integration utilization. The heat exchanger adopts a non-cutting extruded spiral fin tube made of composite material, which has high efficiency heat exchange and good corrosion resistance.


JG- -Smart intelligent boiler control system
The JG-Smar boiler intelligent controller automatically controls the operation of the boiler and has the functions of over-temperature, over-pressure, gas valve group leak detection protection and recording; the control interface displays data such as water temperature, return water temperature, exhaust gas temperature, and operating temperature Curve display, etc.: reserve standard communication interface; optional participation in X-Cloud
The remote monitoring system realizes remote monitoring and other value-added services based on the Internet.
