Biomass: biological biomass where there is a lack of fossil energy area can make full use of biomass.
Biomass energy is the world's four three, second only to coal and natural gas. According to biologists estimated that the Earth's land first annual production from 1000 to 125 billion tons of biomass; marine production of 50 billion tons of biomass per year. The production of biomass energy is far more than the world's total energy demand, equivalent to 10 times the world's total energy consumption.
Biomass is the formation of solar energy to chemical energy stored in the organism, mother biomass as an energy carrier. It directly or indirectly from the photosynthesis of green plants, can be converted to a conventional solid, liquid and gaseous fuels, it is an inexhaustible source of renewable energy, but also the only renewable carbon. Biomass around us everywhere, including bark, wood, wood flour, rice husk and straw, bagasse, forming particles.
Biomass is renewable, pollution, rich stock, through biomass gasification gas is clean pollution-free, high-quality fuel with high calorific value.
Biomass gas composition table:
fuel
H2%
CO2%
O2%
CH4%
CO%
CnHm%
N2%
Hg kj/m3
Corn cob
20.0
13.0
0.9
2.3
17.0
0.2
46.6
5317.6
Tea shell
13.01
7.9
2.2
3.75
22.4
0.2
50.59
5298.
Sawdust
13.76
10.5
0.4
4.04
23.4
1.0
46.9
6085.7
Cotton, wood
11.5
11.6
1.5
1.92
22.7
0.2
50.58
4915.5
Peanut shells
21.0
17.6
0.8
2.1
15.5
0.9
42.1
5819.4

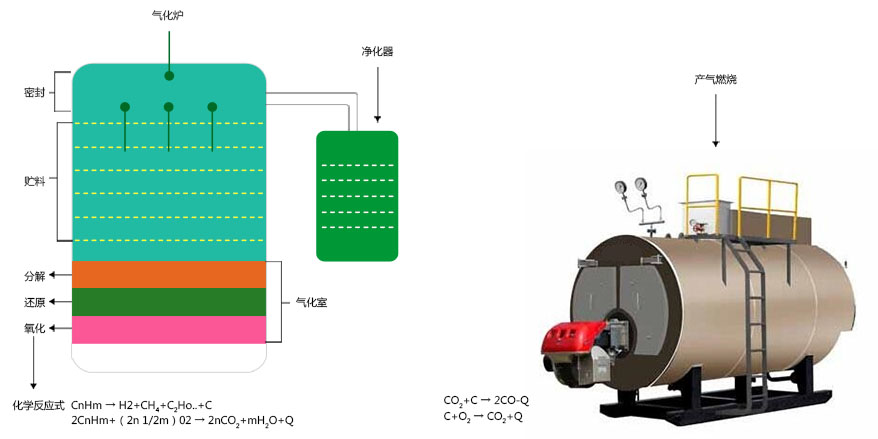

Biomass gas schematics
Guangde company biomass gasification system is very extensive area of raw material, shaped particle, fluffy wood flour, straw, wood trim, etc., the biomass market is the most common raw material capable of being used, and the effect of gasification of raw materials is not limited, without or modification or an additional setting system. Extensive use of surface material advantage is that raw material prices less affected biomass feedstock market fluctuations, you can always use the cheapest resources.
Gasification process belongs to the chain hydrocarbon cracking angle, gas and finally using CO, H2, CH4 and other clean energy.

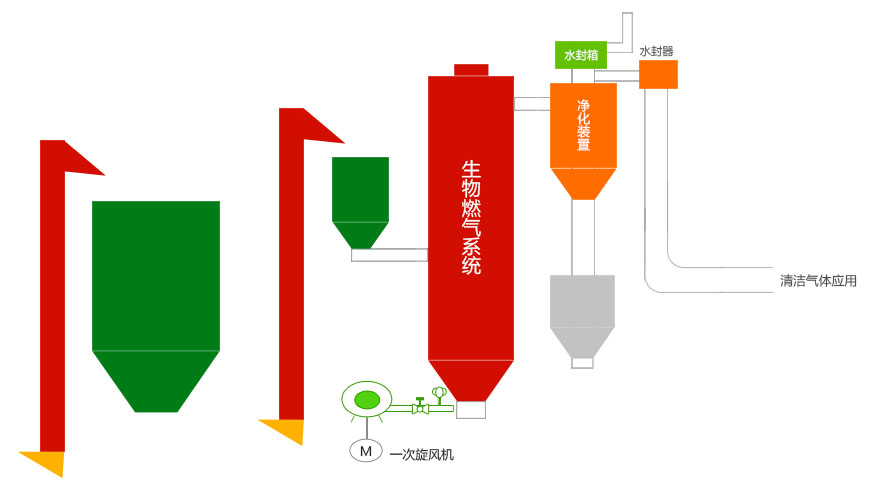

Biomass gasification system of FIG.
Biomass gas advantages: 1, the reaction feed → → → purification applications, to achieve automatic control system.，實現(xiàn)全自動控制系統(tǒng)。 2, compact appearance, the scene environment clean. 3, the gas produced no tar, no negative impact on the post-combustion chamber and exhaust system. 4, provided with a gas leak alarm system, temperature deviation alarm systems, temperature deviation alarm systems, safety, energy-efficient.
Biomass gas applications: Biomass gasification in industrial furnace applications, the furnace temperature up to 1350 ℃, widely used in steam boilers, thermal oil boilers, incinerators, and other, central heating, heating, steam supply system.
Examples of production cost comparison analysis:
1, the type of biomass materials collected plants: biomass materials distributed in rural areas, timber market, furniture production plants, construction sites, forests, biomass fuel the rapid development of environmental protection today, biomass has become a platform for buying and selling mature industrial chain.
2, biomass gas instead of fossil fuels, environmental issues are effectively resolved, flue gas emissions of dust and carbon dioxide emissions up to the national gas emission standards.

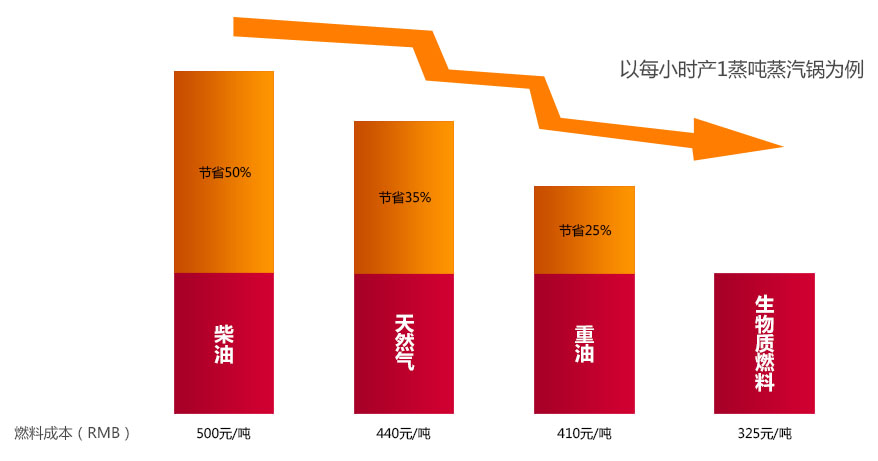

1 ton steam boiler, for example, different fuel cost comparison analysis chart:
